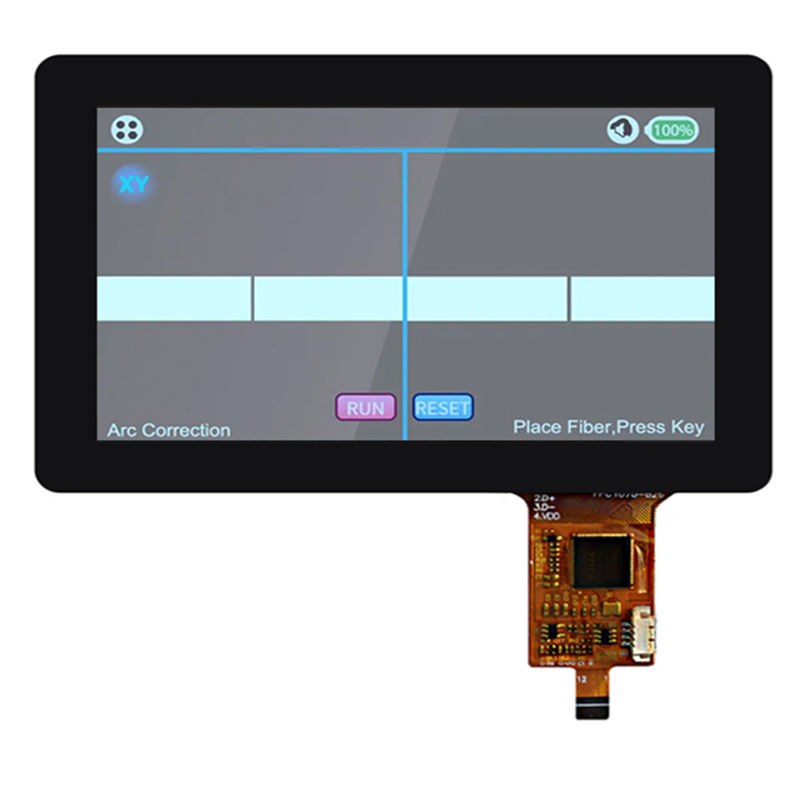

5 inch lvds display IPS 800x480 capacitive touch screen

Name: 5 inch lvds display IPS 800x480 capacitive touch screen
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC050IG40029-D58V.C
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: HETECH

Sertifikasi: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC050IG40029-D58V.C

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5 inch LVDS display IPS, 5 inch capacitive touch screen, 800x480 TFT LCD display


P/n:	HC050IG40029-D58V.C	Ukuran:	5" (IPS)
Jenis tampilan:	(IPS)	Resolusi:	800*480
Garis Besar Dimensi:	130.7 ((W)) * 85.8 ((H) * 4.68 ((T) mm	Area aktif:	108(L)*64,8(T)mm
Kecerahan:	400 cd/m2	Antarmuka:	20pinLVDS
Sudut pandang:	80/80/80/80	Suhu Operasi:	-20 ~ 70 °C
Suhu penyimpanan.:	-20 ~ 70 °C	Rasio kontras:	1000
Rasio aspek16:9o:	16: 9	Aplikasi:	fiber fusion splicer, konverter pemindai film, detektor vena portabel

P/n:	HC050IG40029-D58V.C
Ukuran:	5" (IPS)
Jenis tampilan:	(IPS)
Resolusi:	800*480
Garis Besar Dimensi:	130.7 ((W)) * 85.8 ((H) * 4.68 ((T) mm
Area aktif:	108(L)*64,8(T)mm
Kecerahan:	400 cd/m2
Antarmuka:	20pinLVDS
Sudut pandang:	80/80/80/80
Suhu Operasi:	-20 ~ 70 °C
Suhu penyimpanan.:	-20 ~ 70 °C
Rasio kontras:	1000
Rasio aspek16:9o:	16: 9
Aplikasi:	fiber fusion splicer, konverter pemindai film, detektor vena portabel

5 inch lvds display IPS 800x480 capacitive touch screen

5 inch LVDS Display IPS 800x480 Capacitive Touch Screen

Product Attributes

Attribute	Value
P/N	HC050IG40029-D58V.C
Size	5"(IPS)
Display type	(IPS)
Resolution	800*480
Outline dimension	130.7(W )85.8(H)4.68(T)mm
Active area	108(W)*64.8(H)mm
Brightness	400cd/m2
Interface	20pinLVDS
Viewing angle	80/80/80/80
Operation Temp.	-20~70℃
Storage Temp.	-20~70℃
Contrast ratio	1000
Aspect ratio	16:9
Application	fiber fusion splicer, film scanner converter, portable vein detector

Product Description

HC050IG40029-D58V.C is a 5-inch TFT IPS display with a capacitive touch panel. Users can experience ultra-clear visuals and vivid imaging in any environment from this display which features 800*480 resolution, 1000:1 contrast ratio, 300-nit brightness. With 80° wide viewing angles from all perspectives, a slim 4.68mm ultra-compact design (130.7*85.8mm), and a robust 20-pin LVDS interface, this display with active area of 108mm*64.8mm delivers precision for fiber fusion splicers, film scanners, and portable vein detectors.

General Specification

Parameter	Value
P/N	HC050IG40029-D58V.C
Size	5inch
Display type	Normally Black,IPS
Resolution	800*480
Outline Dimension(mm)	130.7(W )85.8(H)4.68(T)mm
Active Area(mm)	108(W)*64.8(H)mm
Brightness(cd/m²)	400
Viewing Angle(L/R/T/B)	80/80/80/80
Interface	20pinLVDS
Operation Temperature	-20~70℃
Storge Temperature	-20~70℃
Aspect ratio	16:9
Contrast ratio	1000
Application	fiber fusion splicer, film scanner converter, portable vein detector

Pin Assignment

Backlight Driving Conditions

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition
Voltage for LED backlight	Vf	16	18	18.6	V	If=40mA
Current for LED backlight	If	-	40	-	mA	-
LED Life Time	-	-	20000	-	hrs	If=40mA

Product Drawings

5-inch LCD Display Series

Warm reminds: if models listed below can't meet your requirements, customization can be made according to your specific requirements but it is not limited to LCM, RTP, CTP, driver board, etc.

No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	5"	HC050IG25031-B04V01	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	250	-20~70℃	-30~80℃

Customization

FAQ

Q1. Can I have a sample order for LCD Display

A: Yes, we welcome sample order to test and check quality

Q2. What about the lead time?

A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx.

Q4. How to proceed an order for LCD Display?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
